AvGuard™ CI/LI

Refinery and Distribution Fuel Additive
Current region availability Europe, Middle East, Africa, India (EMEAI) Latin America North America
To inquire about availability in other regions or to find out more contact your Afton Representative.
Download Product Data Sheet Request Safety Data Sheet

Key Performance Benefits

Jet Fuel

  • Approved under MIL-PRF-25017 and registered on U.S. Military Qualified Products List, QPL-25017, Category 1

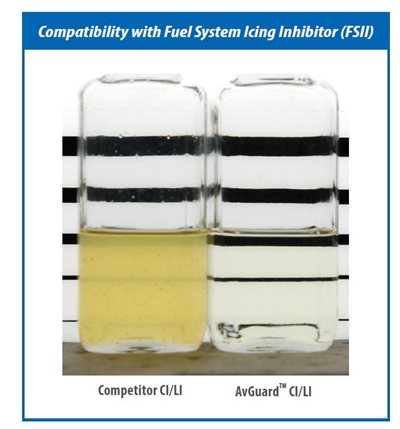

  • Miscible with aviation Fuel System Icing Inhibitor (FSII)

Pipeline

  • Suitable in pipelines designed for the transportation of light petroleum products

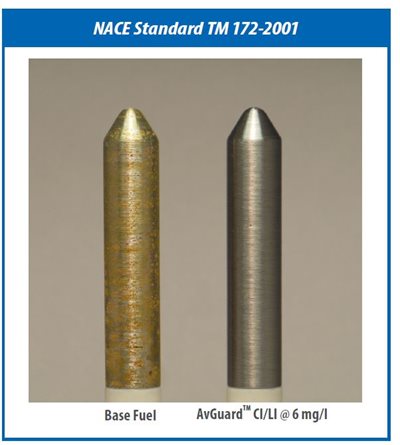

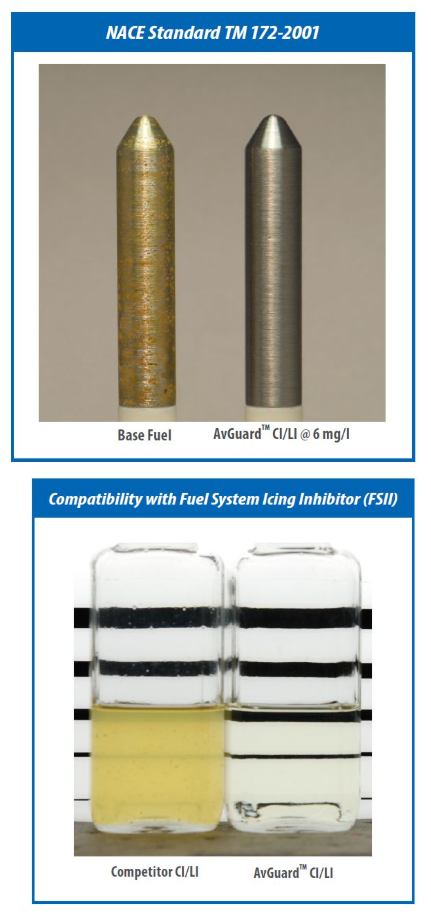

  • Minimises corrosion and the formation of corrosive products
  • Minimises risk of pipeline filter and pump blockages due to products of corrosion
  • Good low temperature properties permitting ease of application
  • Approved on Colonial and Buckeye Pipeline systems in the U.S.

Application

AvGuardTM CI/LI is the latest and most modern QPL-25017 registered corrosion inhibitor and lubricity improving additive, designed and approved for use in military jet fuel and multi-product pipeline applications. AvGuardTM CI/LI is certified as a Biobased Product through the USDA's BioPreferred® programme.

Recommended Dosage

The aviation approved treat rates for AvGuardTM CI/LI are as follows:
Relative Effective Concentration (REC): 6 mg/l (g/m3)
Minimum Effective Concentration (MEC): 9 mg/l (g/m3)
Maximum Allowable Concentration (MAC): 24 mg/l (g/m3)

The treat rate for AvGuardTM CI/LI additive as a corrosion inhibitor will vary based upon desired performance and fuel characteristics. The typical range is 3 to 9 ppmv, with a recommendation of 6 ppmv. Please contact your Afton Chemical representative for specific recommendations.

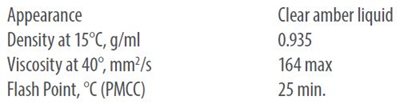

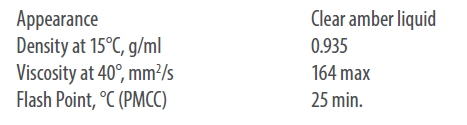

Typical Characteristics

Handling Information

Max Handling Temp: 40°C
Shelf Life: 84 months
